Duo 6
Elegant 6 Inch Up and Down Luminaire

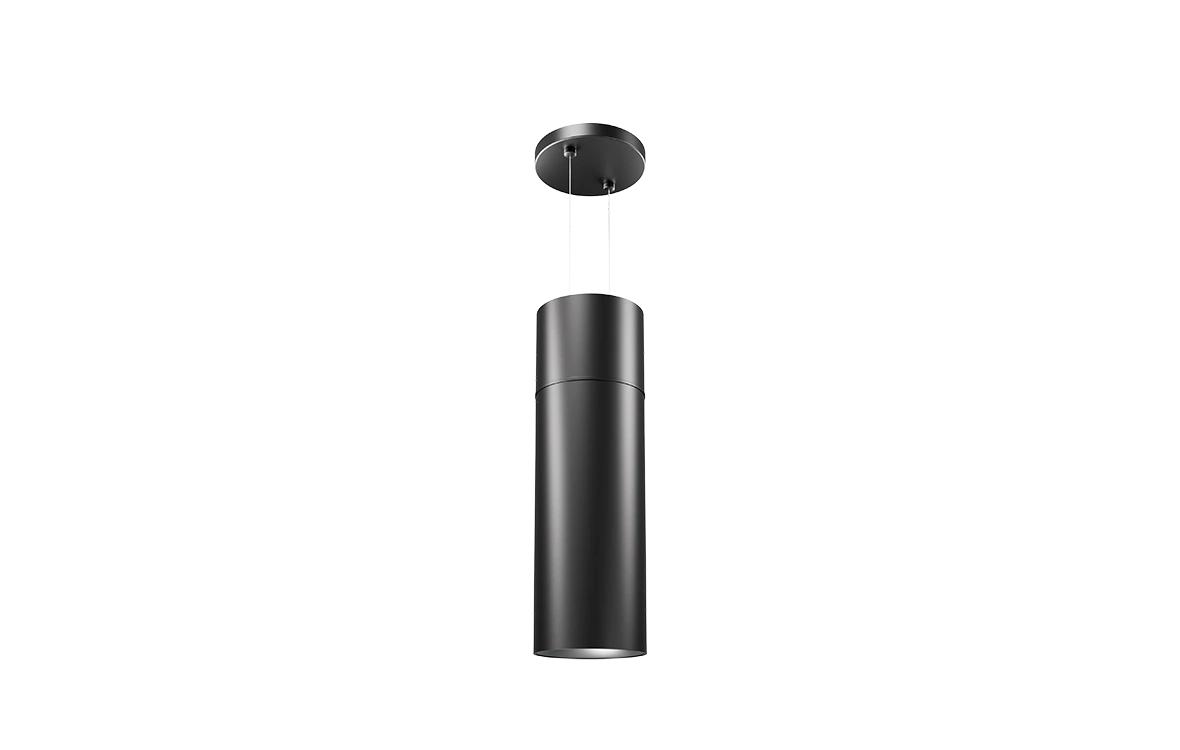

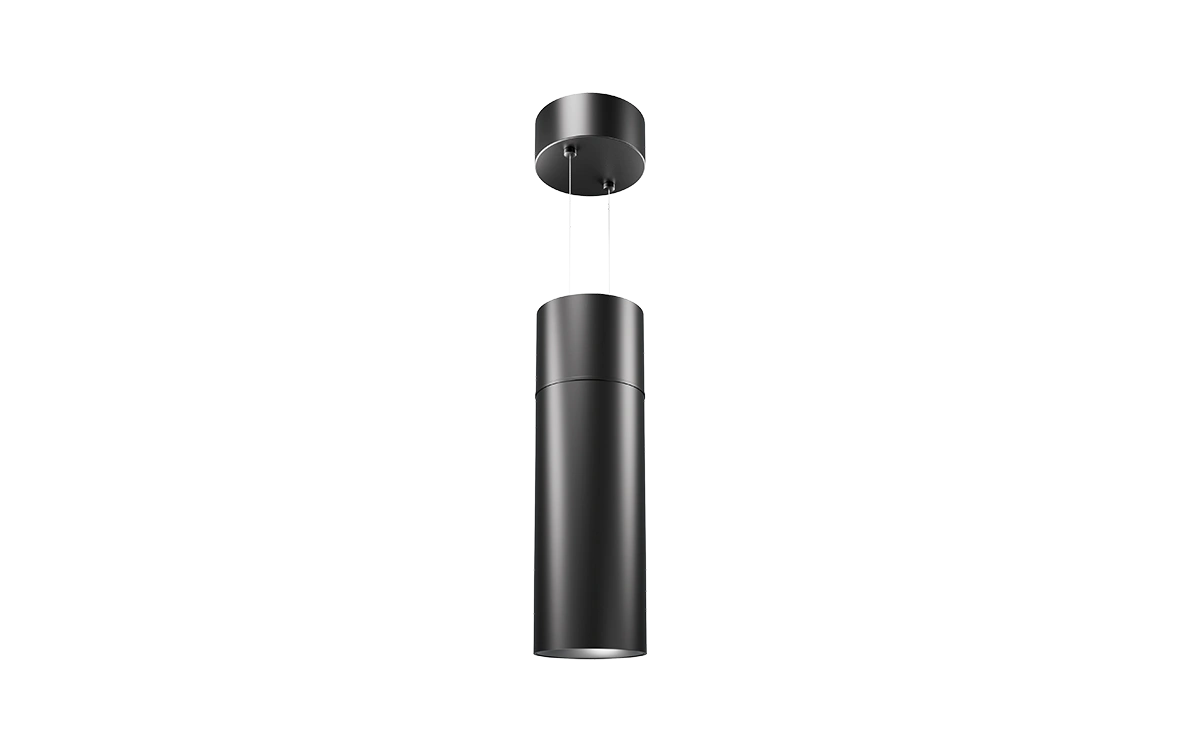

The Duo 6 Pendant uses our proprietary Power Line System that both powers and suspends the luminaire and fully field adjustable. This pendant offers a direct/indirect lighting solution with a seamless exterior finish and no external connectors. Compatible with Colorflip color-changing technologies, and DMX dimming with separate Uplight and Downlight control.
Specifications
Electrical
Power InputDownlight: 15W, 25W, 50W, 70W | 120–277V
Uplight (Static White): 15W, 25W | 120–277V
RGB Uplight: 25W (RGB) | 120–277V
Dimming & ControlStandard Duo 6:
• TRC line-voltage phase dimming to 1% (120V only)
• LDE1 Hi-Lume EcoSystem dimming to 1%
• Superior 0–10V dimming to 1%
• DMX high-resolution dimming to 0.1% (RJ45, supports ANSI E1.20 RDM)
Rated Life100,000 hours (L70)
Surge ProtectionBuilt-in 2.5kV
Related Products
Duo 6

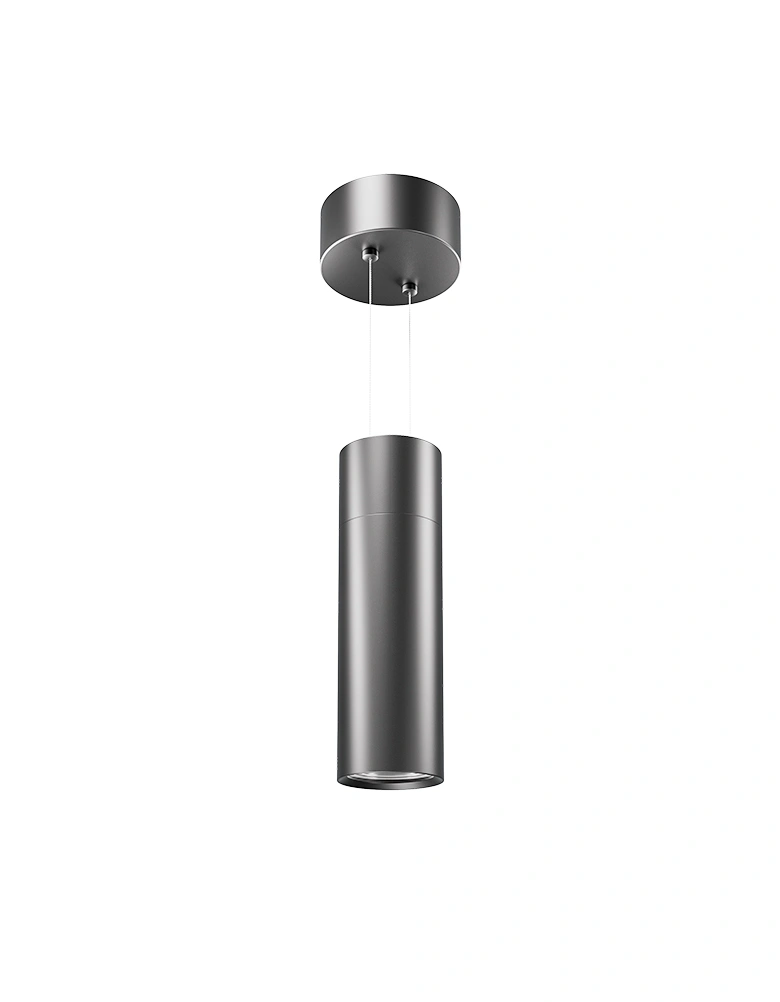

Powerline Static
