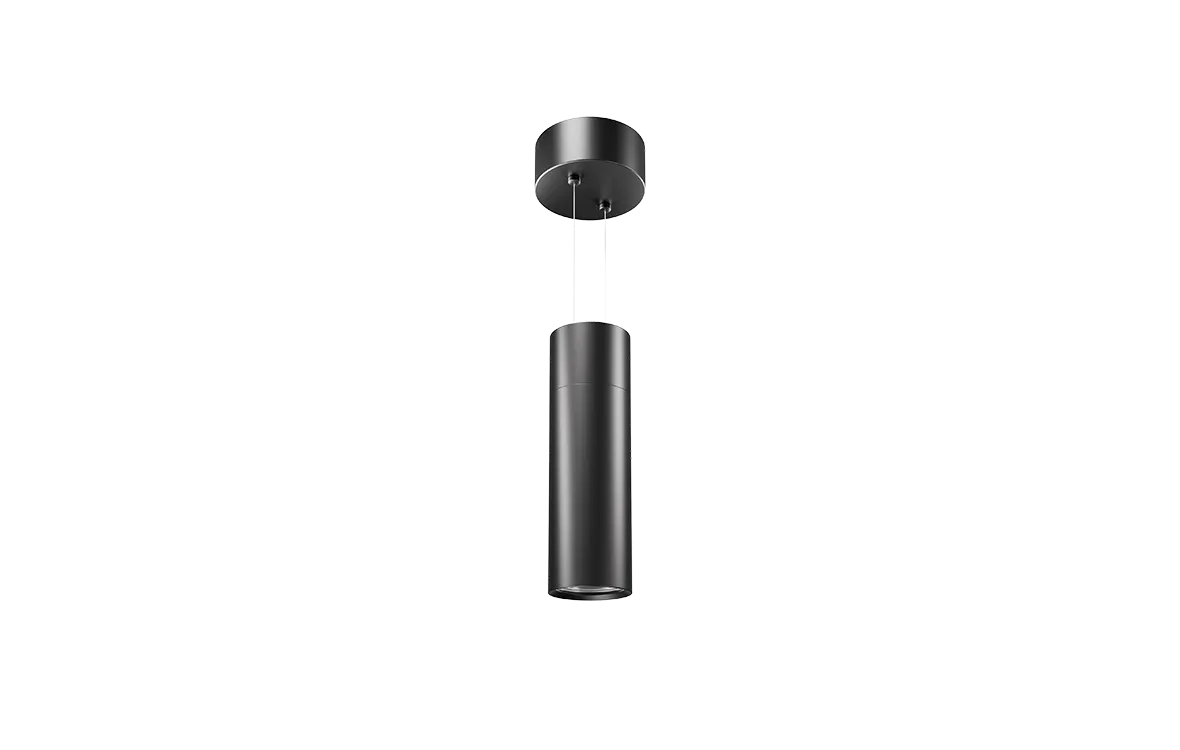

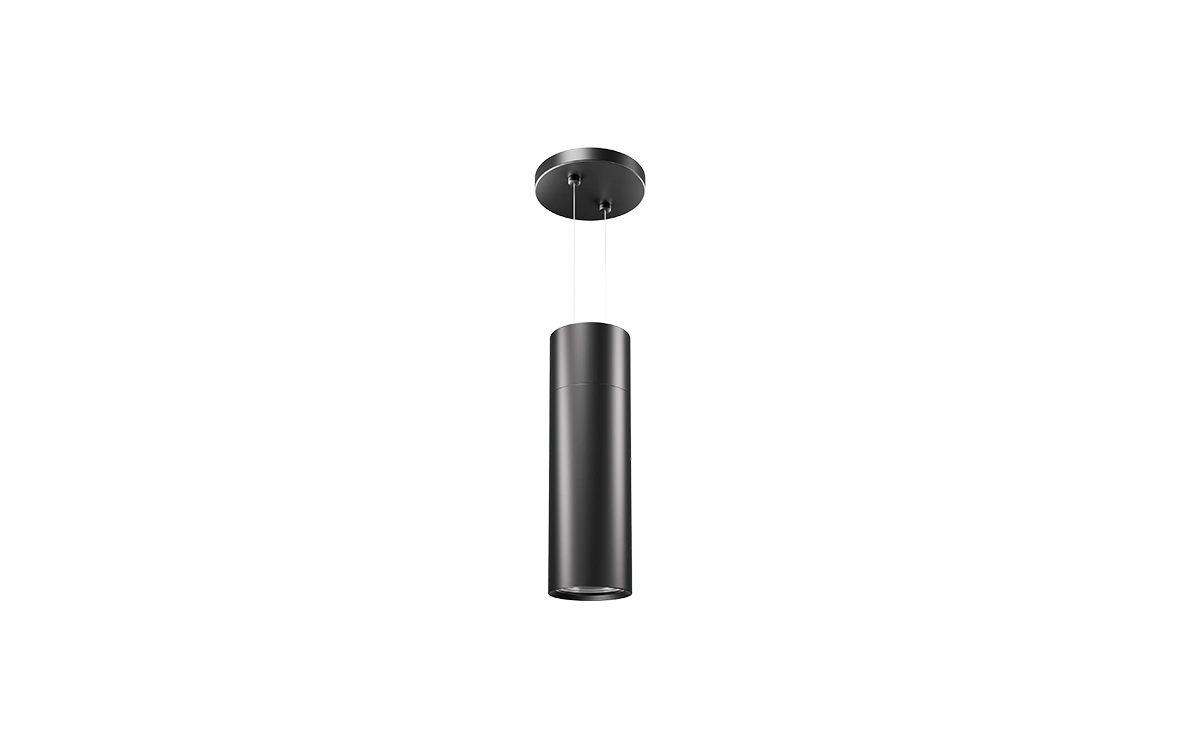

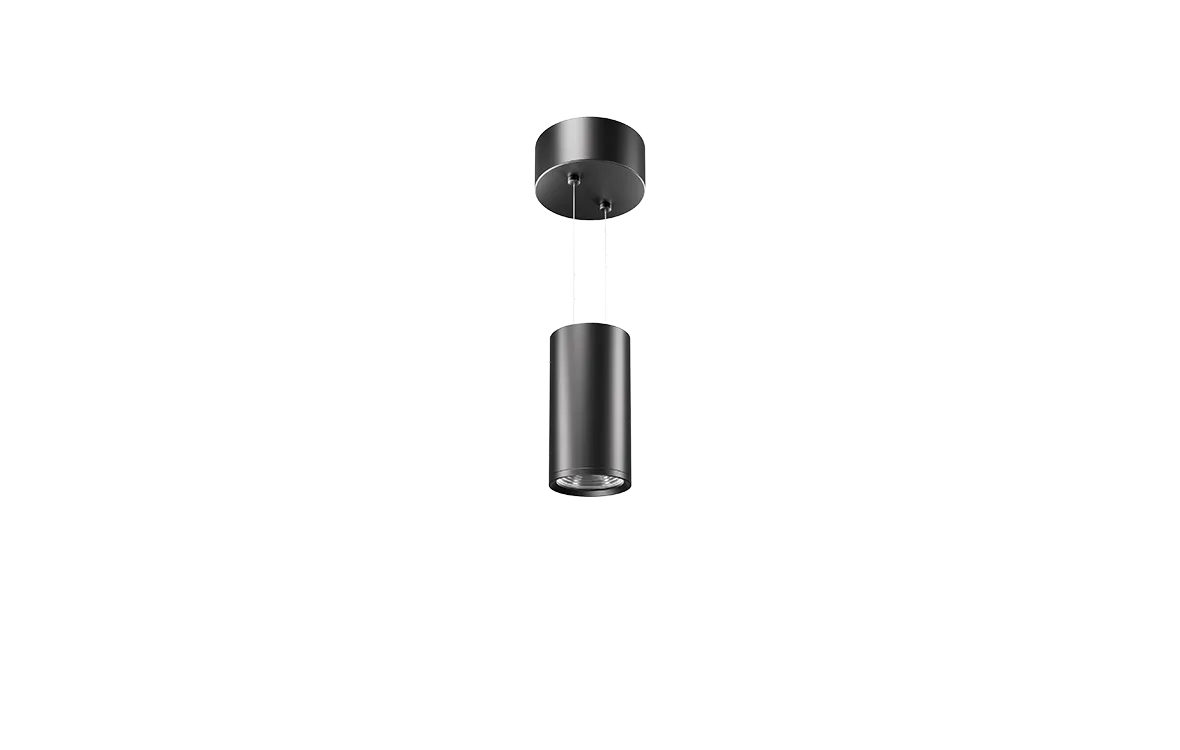

Duo 4

Elegant Up and Down Cylinder

Duo is a dual-emission cylinder designed for balanced direct and indirect illumination. With separate up and down light sources housed in a single, streamlined form, it provides both functional white light below and ambient illumination above. Independent dimming control for each output allows precise tuning of light levels, supporting a wide range of spatial and visual requirements while maintaining a minimal presence.

For added atmosphere, Duo can be specified with an RGB uplight, introducing subtle color to the ceiling while preserving a powerful white downlight for everyday use. A PowerLine mounting system integrates suspension and power delivery into a single, slender cable that visually disappears into the space. The result is a fixture that appears to float free from visual clutter, allowing light and architecture to take center stage.

RGBW
Tunable White
Static White
DMX Compatible

Features

<p>PowerLine Suspension System</p>

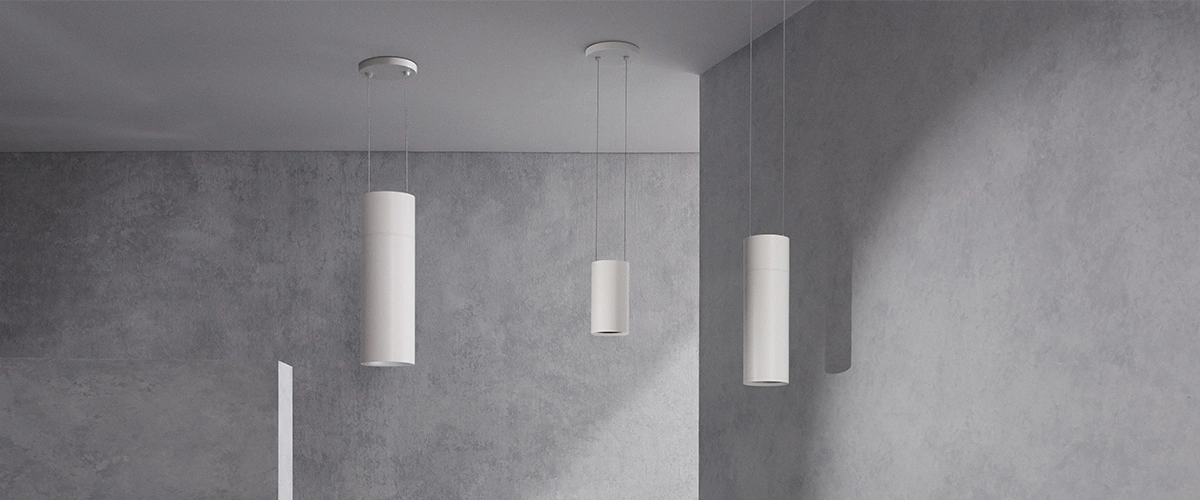

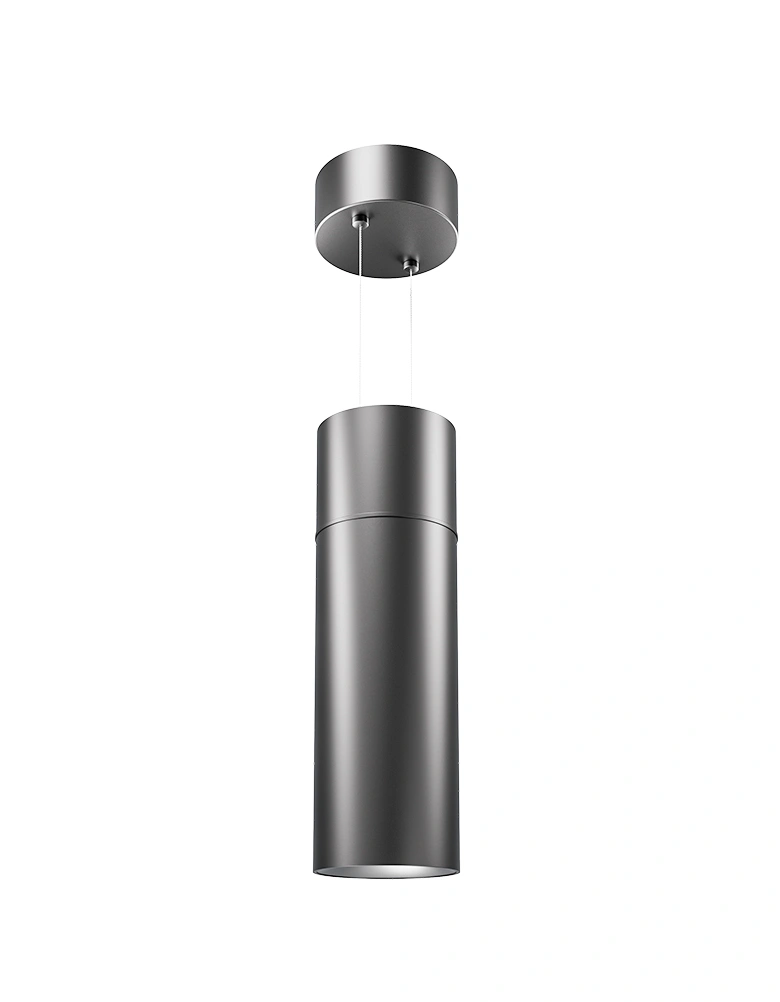

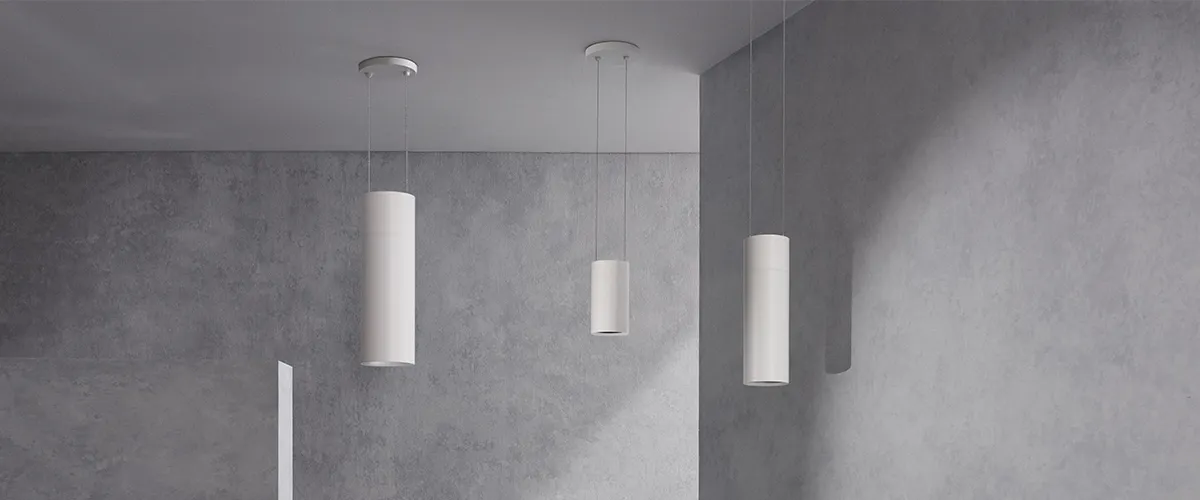

PowerLine Suspension System

The PowerLine mounting system combines suspension and power delivery into a single, slender cable, eliminating the visual noise of exposed wiring. By allowing the cable to visually disappear into the background, Duo achieves a floating presence that reinforces its clean, minimal form and keeps the focus on light rather than hardware.

<p>Color-Accented Indirect Uplight</p>

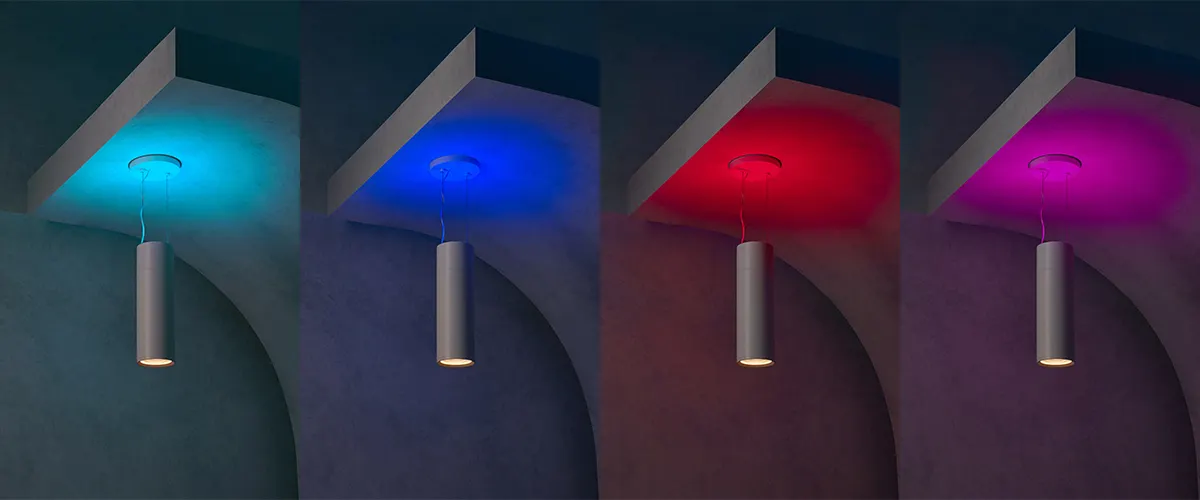

Color-Accented Indirect Uplight

Duo’s RGB uplight introduces controlled color to the ceiling plane, allowing the atmosphere of a space to shift without affecting functional illumination below. The uplight operates independently from the white downlight, making it possible to maintain consistent general lighting while using color to add mood, highlight architectural volume, or support unique settings.

Downloads

Specifications

Electrical

Power InputDuo 4 Standard: Downlight 15W, 25W, 50W | 120–277V; Uplight 15W, 25W | 120–277V Duo 4 RGB Uplight: Downlight 25W | 120–277V; Uplight 25W (RGB) | 120–277V Duo 4 Mini Standard: Downlight 15W | 120–277V; Uplight 15W | 120–277V
Dimming & ControlDuo 4 Standard: • TRC linear line-voltage phase dimming to 1% (120V only) • LDE1 Hi-Lume 1% EcoSystem LED Driver with Soft-on, Fade-to-Black • Superior 0–10V dimming to 1% • DMX high-resolution dimming to 0.1% (RJ45 only; supports ANSI E1.20 RDM)
Rated LifeDuo 4 Standard: >100,000 hours (L70) Duo 4 RGB Uplight: >100,000 hours (L70) Duo 4 Mini Standard: >100,000 hours (L70)
Surge ProtectionBuilt-in 2.5kV
