REV Flex 2
Adjustable and Versatile Recessed Downlight
REV Flex 2 is a compact, adjustable recessed downlight designed to deliver precision lighting from an exceptionally small aperture. Engineered for seamless architectural integration, its 2″ form factor provides a clean ceiling appearance while maintaining strong lumen performance for its size. A 40° cut-off angle minimizes glare and improves visual comfort, making REV Flex 2 well suited for refined residential and commercial interiors where control and discretion are essential.
Designed for flexibility in the field, REV Flex 2 features 359° rotation and up to 30° tilt, allowing precise hot aiming after installation. Interchangeable optics (25°, 40°, and 55°) support a wide range of applications, from accent lighting to general illumination. Available with Archi-Color® W+RGB technology, advanced dimming and control options—including DALI and DMX—and contractor-friendly adjustment mechanisms, REV Flex 2 delivers maximum versatility and performance in a minimal architectural footprint.
Features

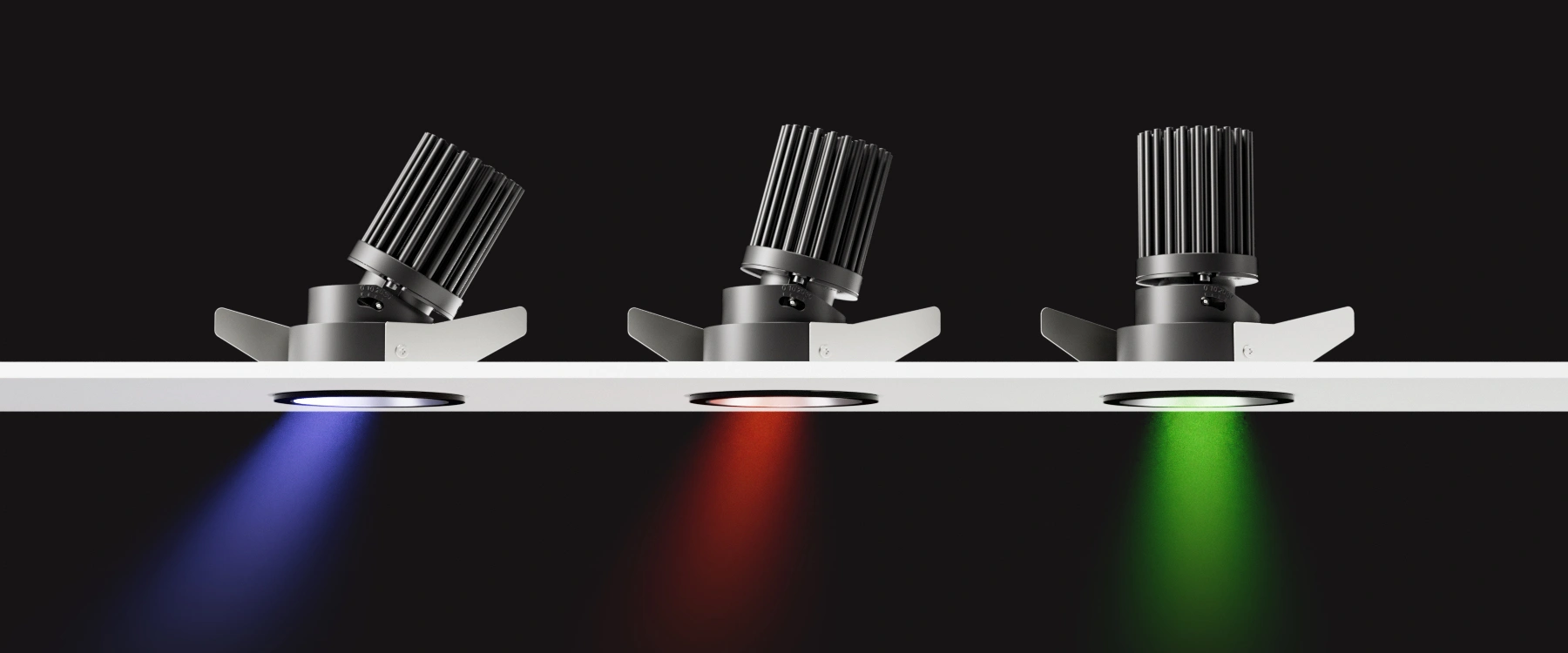

Smaller Size Bigger Impact
Meteor’s W+RGB color-changing solution is now available in its most compact form yet, integrated into the REV Flex 2. From high-quality white illumination to dynamic color-changing effects, designers can achieve both from a single light source without compromising performance or precision.
This latest evolution of Archi-Color® technology features a 2″ aperture platform with a 10 mm light-emitting surface (LES), enabling advanced flip-chip integration in an ultra-compact format. The result is a efficient, cost-effective solution that delivers premium white light and vibrant color control in applications where space, scale, and architectural discretion are critical.
Precise Adjustments
REV Flex offers smooth, precise aiming with up to 359° rotation and 30° tilt, allowing light to be accurately directed where it’s needed. The spring-loaded tilt mechanism maintains its set position during installation, ensuring consistent aiming and long-term stability. With near-full rotation, REV Flex eliminates blind spots and provides confident, repeatable alignment for a wide range of lighting applications.
