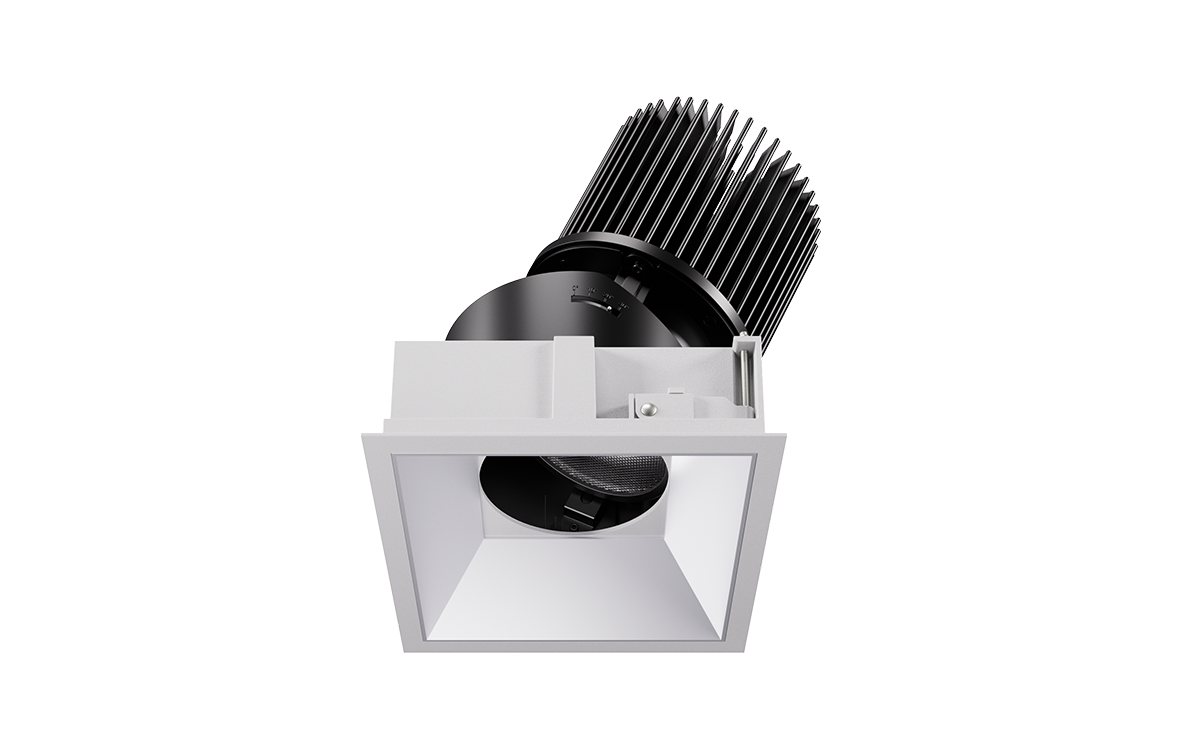

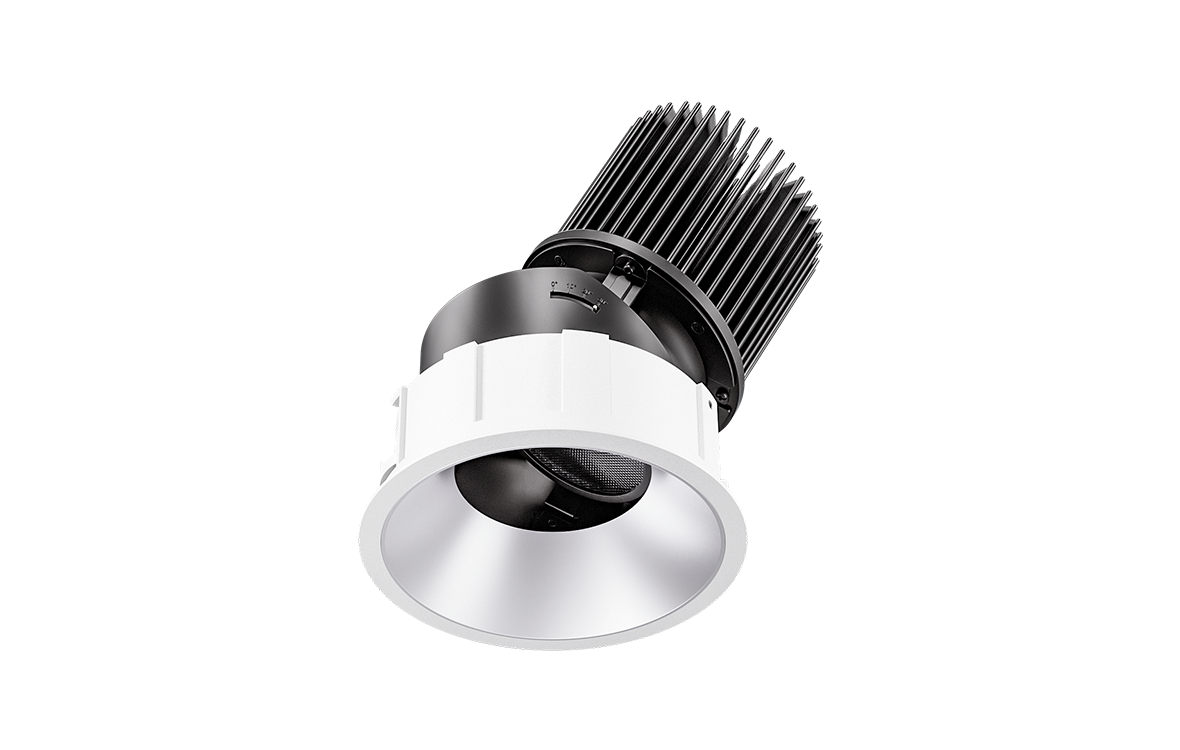

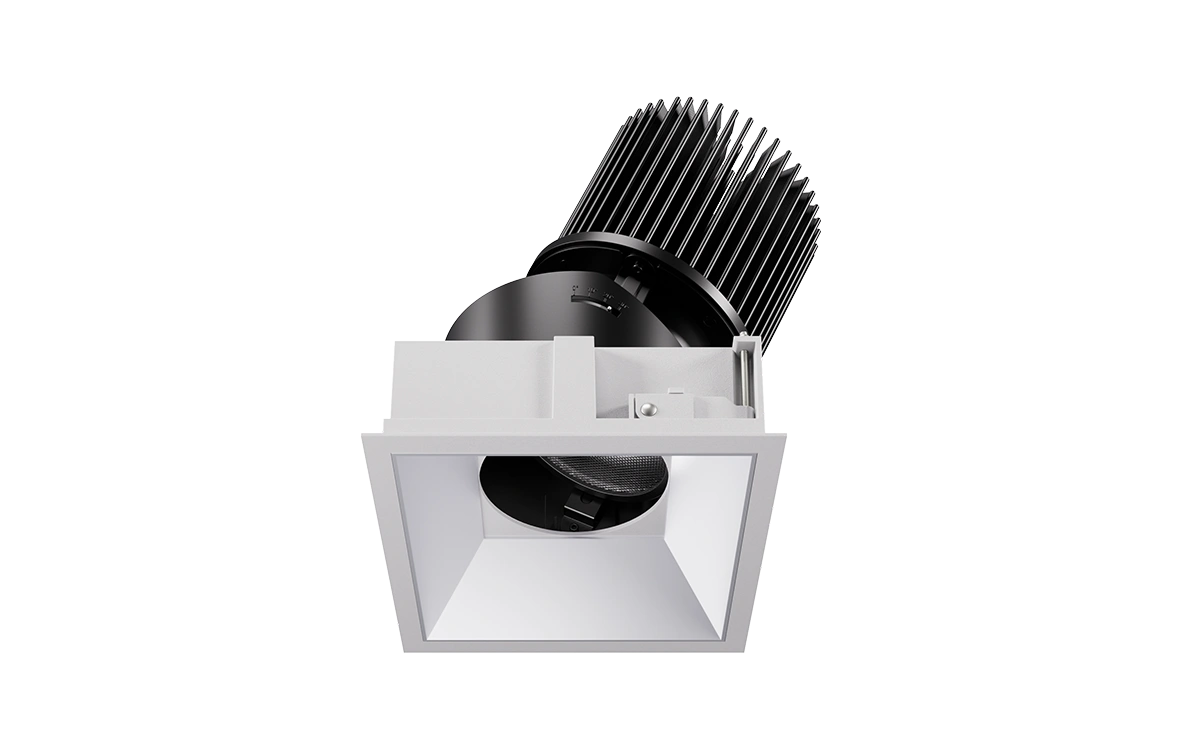

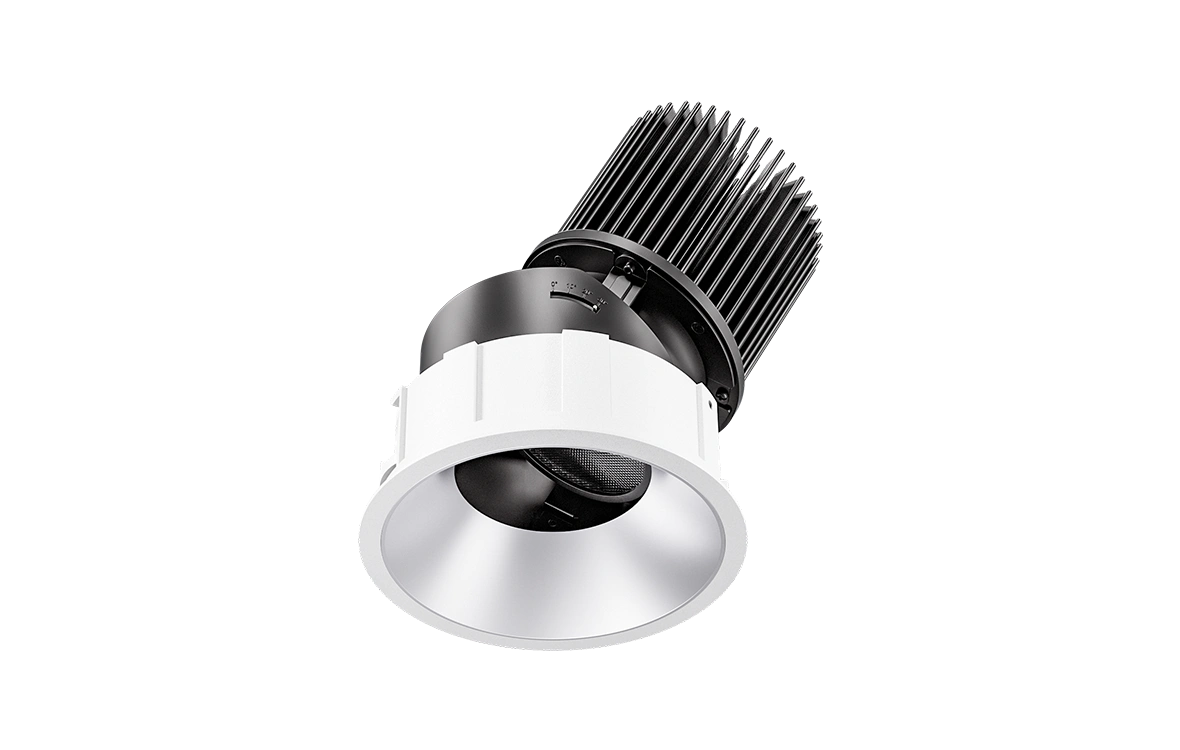

The REV Flex can be freely rotated up to 359°, and tilted to a maximum angle of 30°, providing convenient hot aiming for any installation.

The REV Flex can be freely rotated up to 359°, and tilted to a maximum angle of 30°, providing convenient hot aiming for any installation.

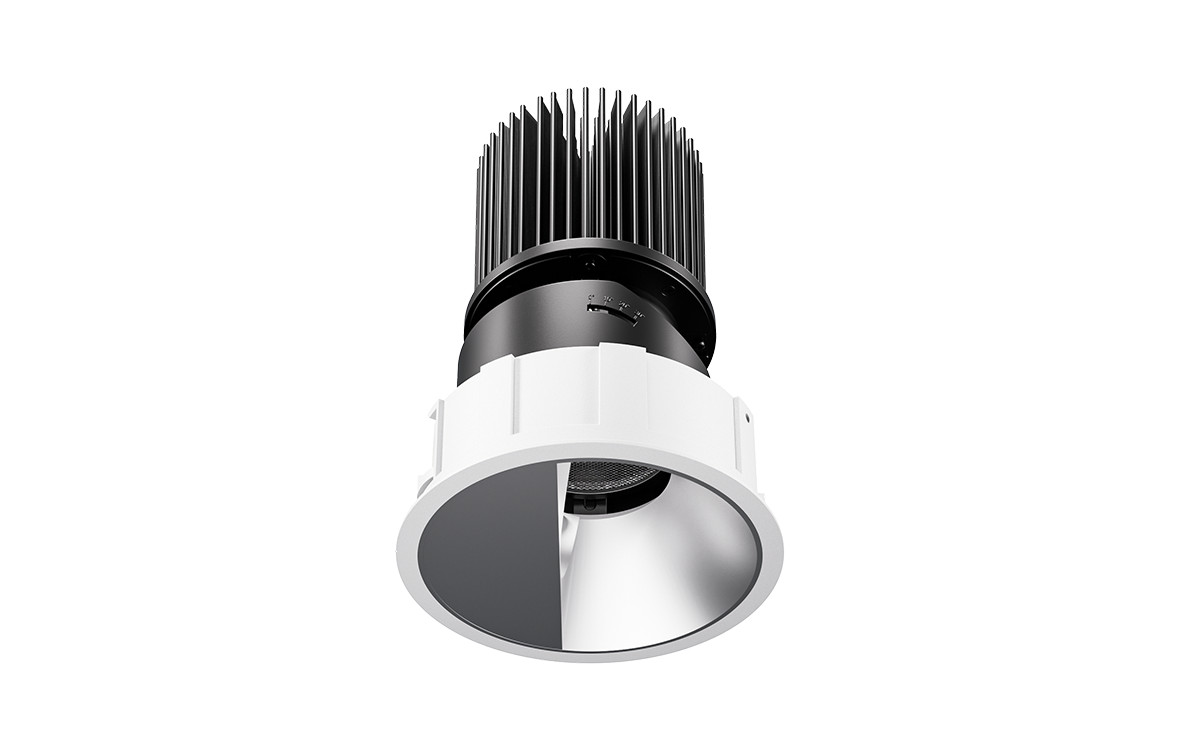

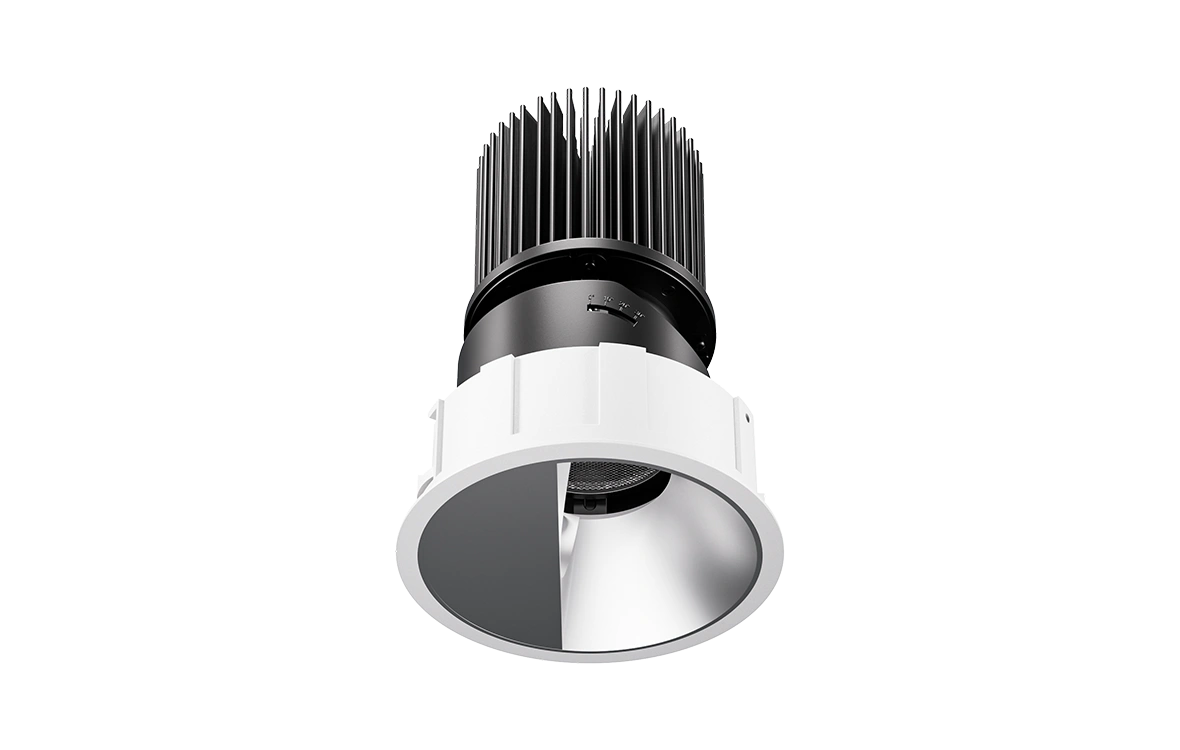

The REV Flex series has a regressed 40-degree cut-off trim for fixed applications and is versatile with field-replaceable optics, flangeless options, and wall wash options for added flexibility.

The REV Flex series has a regressed 40-degree cut-off trim for fixed applications and is versatile with field-replaceable optics, flangeless options, and wall wash options for added flexibility.
DIMENSIONS

Meteor Lighting REV Flex 6 Dimensions

FEATURES
Contractor-Friendly Design

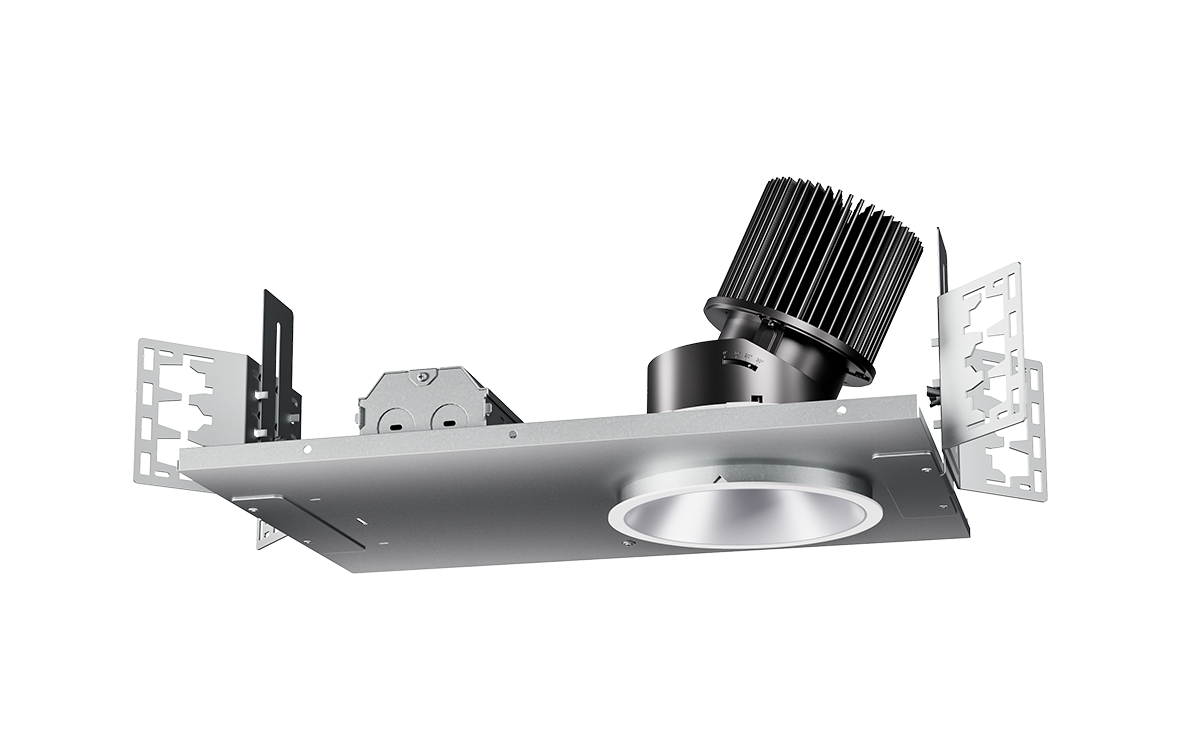

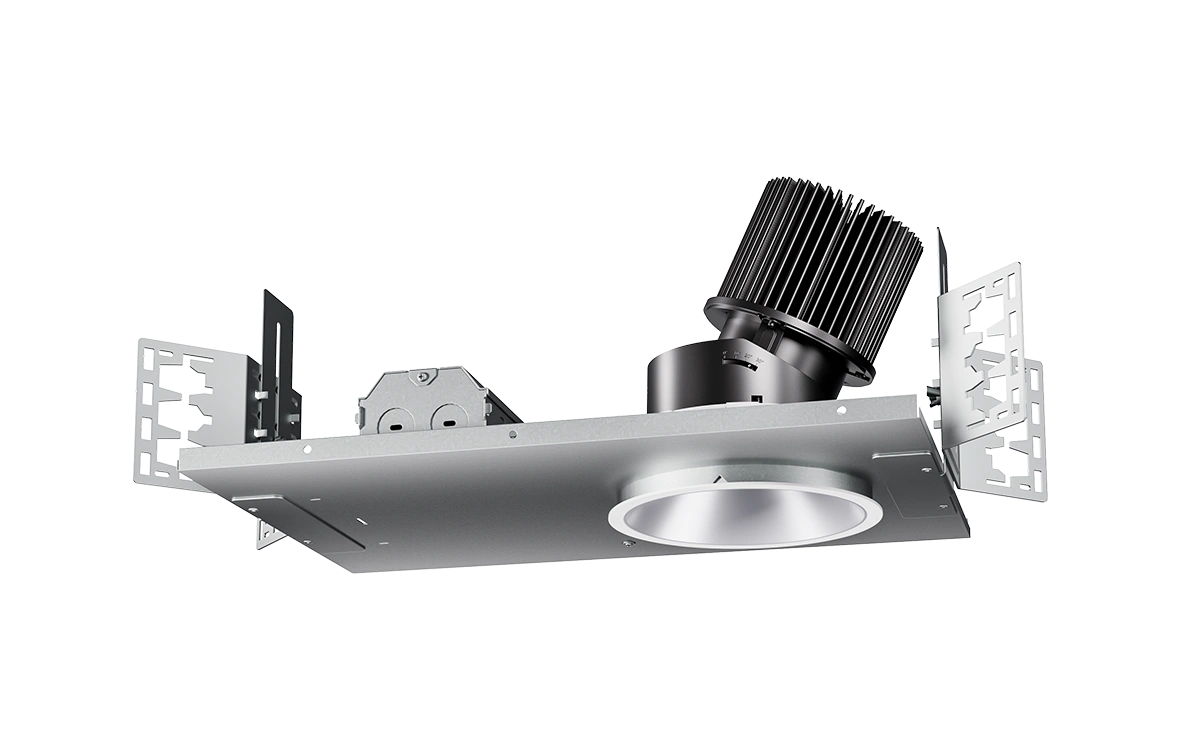

The unique power box and innovative clasp design in the REV Flex's new construction frame allow it to be truly accessible from below, even in the tightest of spaces.

Smaller Size Bigger Impact
Our innovative ColorFlip™ technology, featuring an advanced flip-chip design, is now available in a compact 2"aperture package. It provides an unparalleled level of efficiency and cost-effectiveness for delivering crisp white light and unlimited color possibilities.

Advanced Control Systems
The REV Flex series is compatible with a variety of dimming protocols including 0-10V, DALI, and DMX for maximum control to create a more comfortable and inviting atmosphere.

DETAILS
MODEL

6"REV FLEX
WATTAGE

30 W
45 W
60 W
CCT

2700 K
3000 K
3500 K
4000 K
LUMEN OUTPUT

2200 lm
3060 lm
4590 lm
DIMMING

Superior 0-10V dims to 1%
TRIAC dims to 1%
DMX dims to 0.1%
DALI dims to 1%
CRI

85
93
FINISH

Black
White
CERTIFICATIONS
