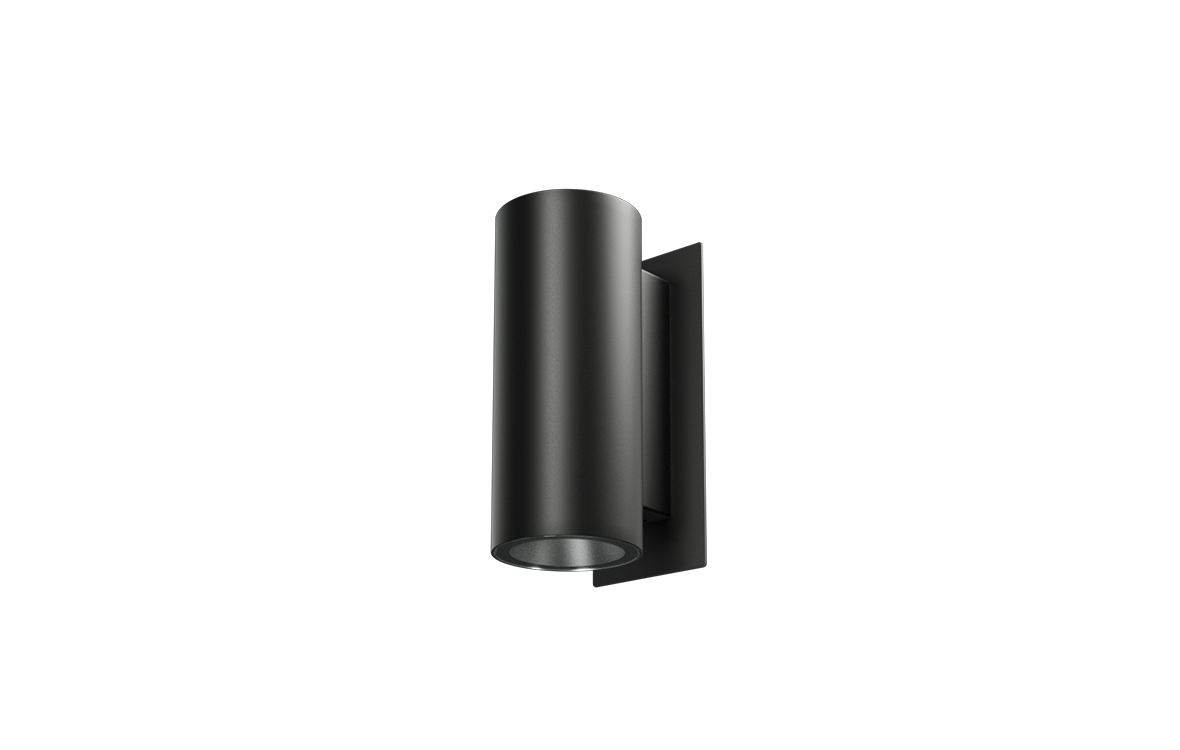

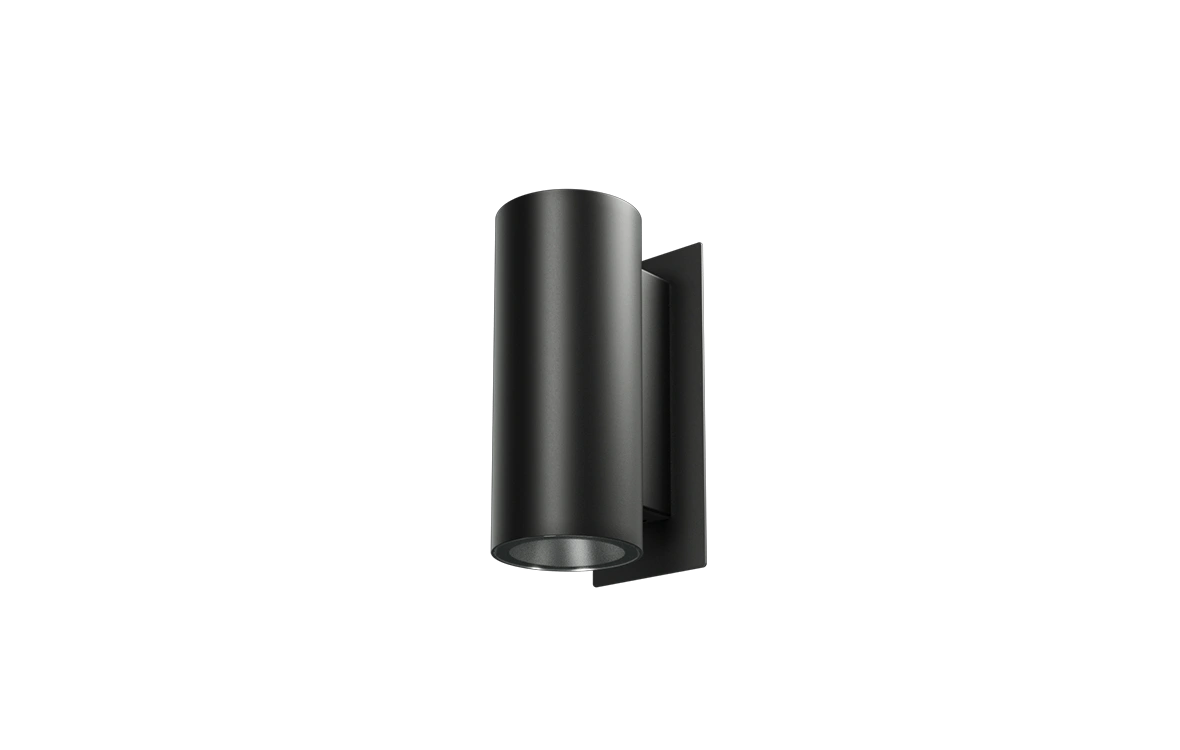

Lance 4
Architectural Wall Grazing Cylinder
Lance is a bi-directional surface-mounted wall luminaire designed to graze architecture with precision and presence. By delivering controlled up and down illumination from a single form, it enhances façade depth, texture, and rhythm after dark. Shielded optics and precise beam control allow Lance to graze surfaces cleanly, creating strong visual structure while maintaining a composed, architectural presence.
Built for exterior performance, Lance is IP65 rated and delivers up to 10,000 lumens through a Thermal Beam design that turns the entire housing into an active heat sink. Available in dual- or single-emission configurations, it supports DMX control with independent up and downlight management. When paired with Archi-Color®, Lance introduces expressive color to façades while preserving powerful, true white light where visual clarity and performance matter most.
Features

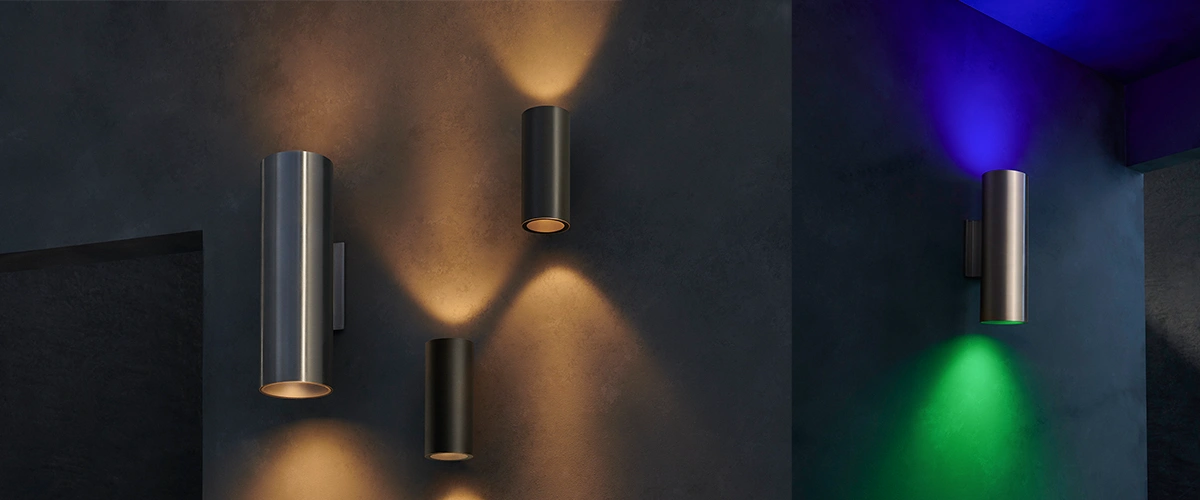

Color and Optical Control
Lance combines expressive color capability with precise optical control to shape light for architectural applications. When paired with Archi-Color® technology, it introduces dynamic color to exterior facades while maintaining controlled white light for functional illumination. A range of optical options, including forward throw, wall wash, and linear lenses, allows designers to tailor distribution to the surface, whether emphasizing texture, washing planes, or creating strong vertical accents.

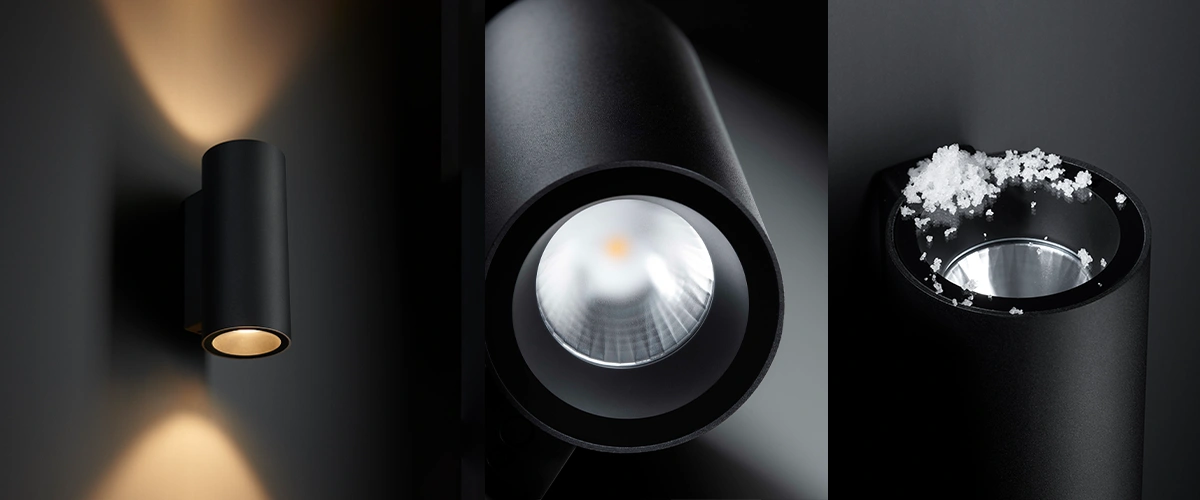

Withstand the Elements
Lance is engineered for reliable performance in outdoor environments, featuring an IP65, wet-location–rated construction with fully sealed optics protected by a glass cover and silicone gaskets throughout. For extended durability, outdoor configurations use UV- and corrosion-resistant coatings and wiring, while natatorium and marine options incorporate enhanced sealants and materials designed to withstand long-term exposure to chlorine vapors and saltwater environments.
Specifications
Electrical
Power Input• Up / Down
Uplight: 10W, 15W | 120 - 277V
Downlight: 10W, 15W | 120 - 277V
• Single sided
20W, 30W | 120 - 277V
Dimming & Control• Proprietary VX Driver™ for flicker-free dimming
• 0–10V: Dims to 1%, 10%
• TRC: Linear line-voltage phase control, dims to 1%
Surge Protection• Built-in 2.5kV
