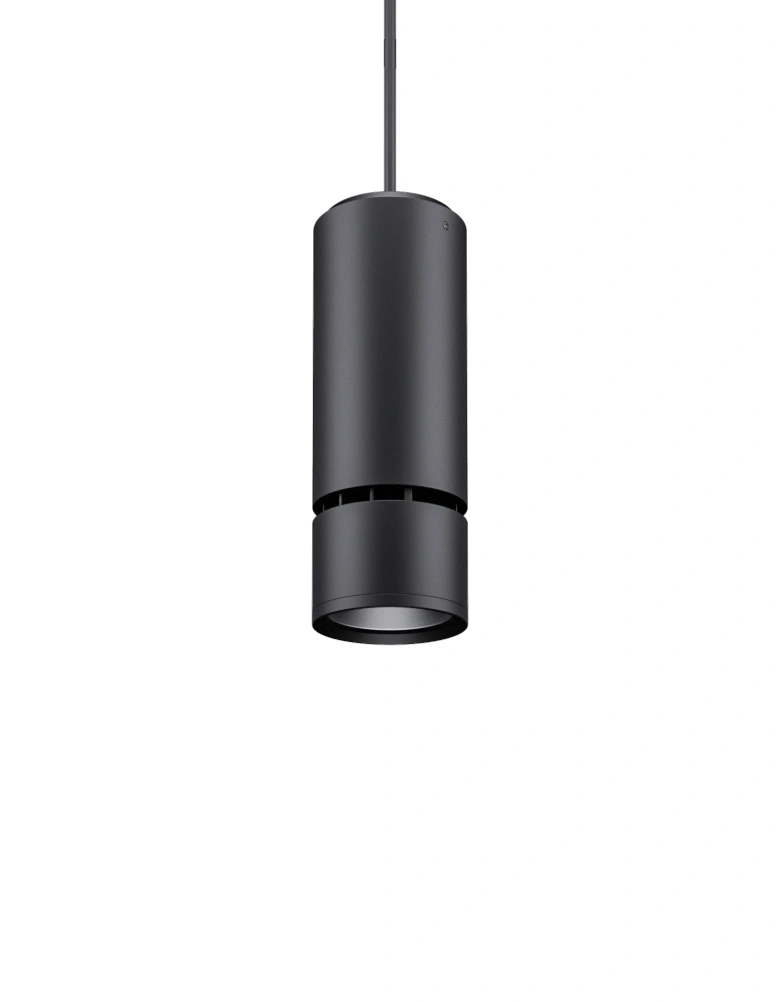

Atria II 10

Flagship Architectural Cylinder

Atria II Series is Meteor’s flagship architectural cylinder—an expression where form, material, and detail do the work. The cylinder is one of the most enduring shapes in architectural lighting, and Atria II distills it to its essence. With a timeless profile retained over decades, the family spans a range of apertures to address nearly every application.

Atria II delivers best-in-class performance with outputs ranging from 1,950 to 26,500 lumens, including DLC-listed and outdoor-rated configurations. The series supports the full suite of Meteor color-changing technologies, advanced DMX and wireless control systems, and a broad range of mounting options. Visually quiet and precisely controlled, Atria II integrates into the architecture, revealing only an elegant ring of light while providing powerful illumination for theatrical venues, auditoriums, convention centers, and other performance spaces.

Archi-Color® W+RGB
Static White
Tunable White
Warm Dim
IP65 Rated
DMX Compatible
DALI
DLC
Intro Page

Features

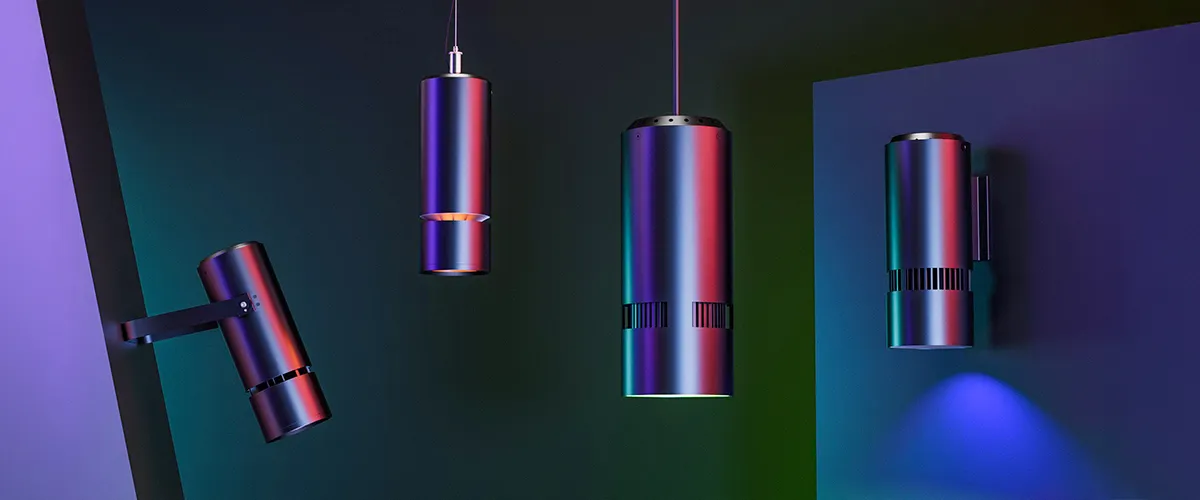

<p>Versatility Across Applications</p>

Versatility Across Applications

Atria II is offered as a cohesive family of cylinders, developed to perform across a wide range of mounting heights while maintaining a consistent, refined visual language. Multiple mounting options, color technologies, and dimming selections support both architectural and performance environments. With static white and color-changing solutions, advanced DMX and wireless control, and optical accessories such as diffusers and cross baffles, light quality and visual comfort can be precisely tailored.

<p></p>

Atria II (Mark 2) advances the series with a focused upgrade to performance and finish. The latest generation delivers up to a 30% increase in overall output, extending the capability of the platform while maintaining its refined proportions and optical control. A newly developed Silent Black finish further elevates visual performance, reducing internal reflections and perceived brightness for improved comfort in critical viewing environments.

Specifications

Electrical

Power InputStatic White: 80W, 110W, 140W, 180W, 220W | 120–277V Archi-Color: • W+RGB 100W (White=50W, RGB=50W) | 120–277V • W+RGB 200W Type A (White=100W, RGB=100W) | 120–277V • W+RGB 200W Type B (White=150W, RGB=50W) | 120–277V • W+Hue 100W (White=66W, HSV=33W) | 120–277V • W+Hue 200W (White=132W, HSV=66W) | 120–277V
Dimming & ControlStatic White: •Standard 0-10V dims to 10% •Superior 0-10V dims to 1% •DMX high-resolution to 0.1% •TRC line-voltage phase to 1% (120V only) •DALI dims to 10% Archi-Color: •DMX high-resolution dimming to 0.1% (supports ANSI E1.20 RDM protocol)
Rated LifeStatic White: > 100,000 hours (L70) Archi-Color: > 100,000 hours (L70)
Surge ProtectionBuilt-in 4kV
