Meteor Lighting
Products/REV 6

REV 6

REVolutionary Downlights

The REV Series is Meteor’s flagship recessed downlight platform, engineered for demanding high-ceiling environments and architectural applications where performance cannot be compromised. Available in 4″, 6″, and 8″ apertures, REV delivers powerful, glare-controlled output capable of supporting mounting heights above 30 ft, making it a proven solution for large-scale commercial and public spaces.

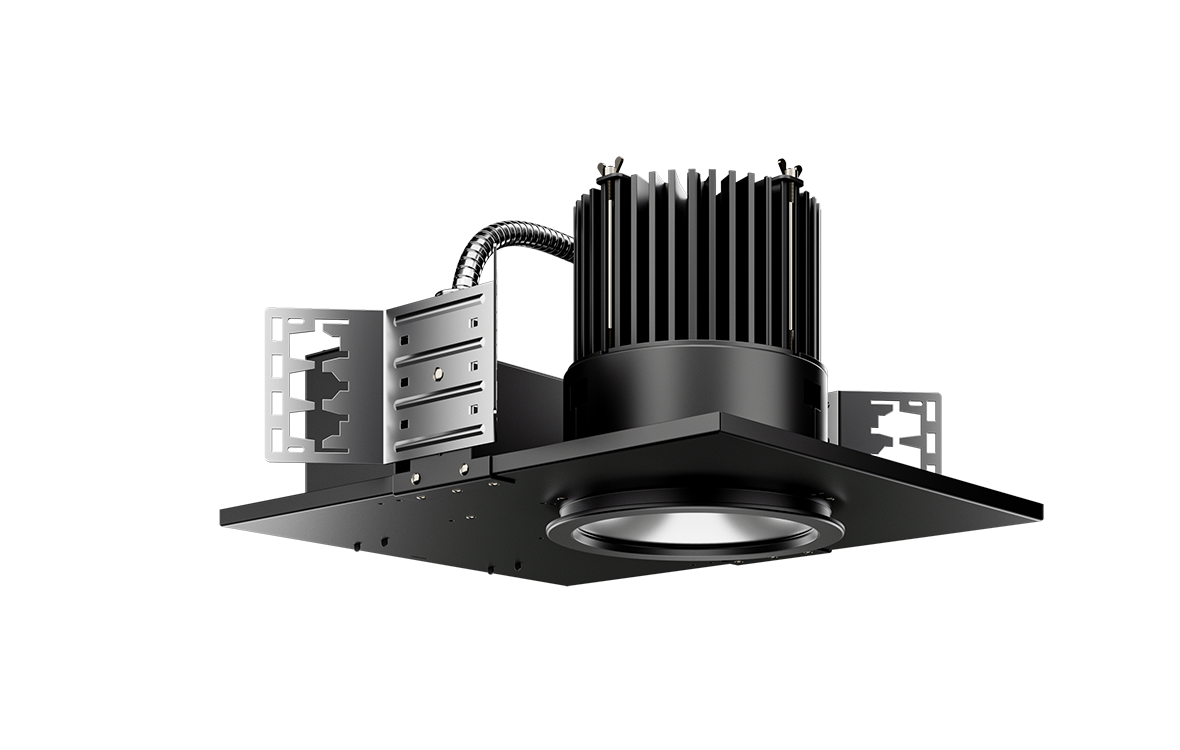

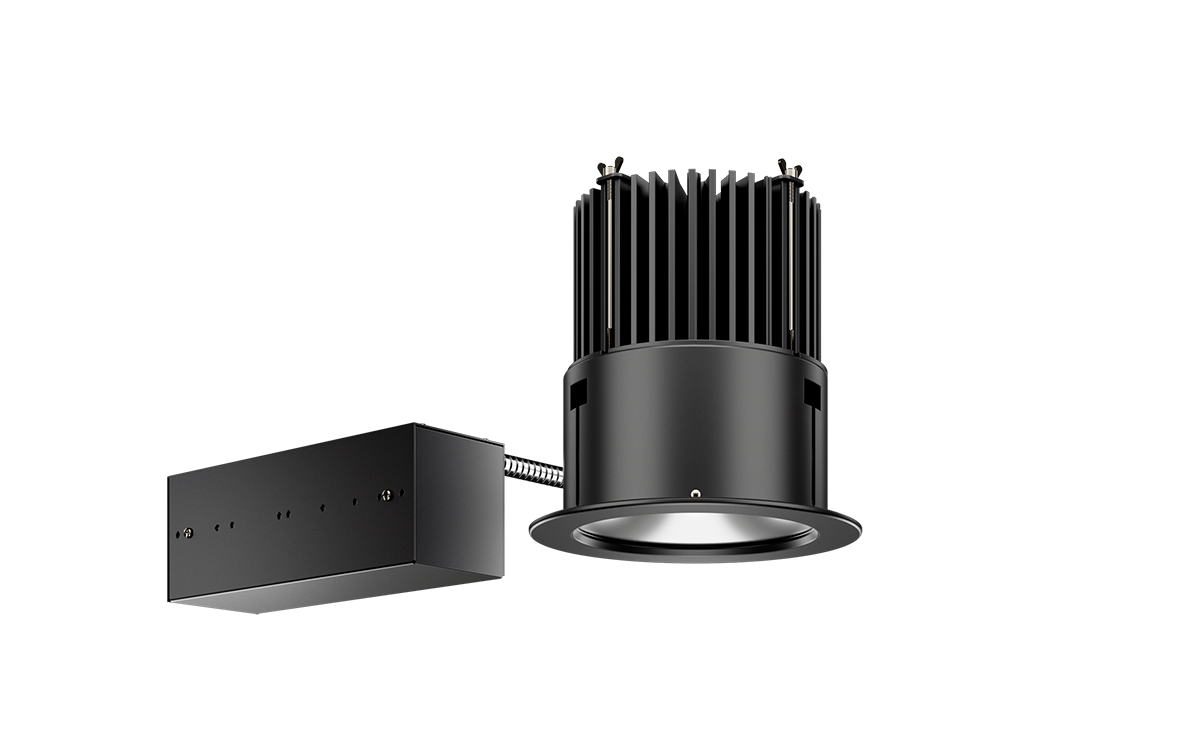

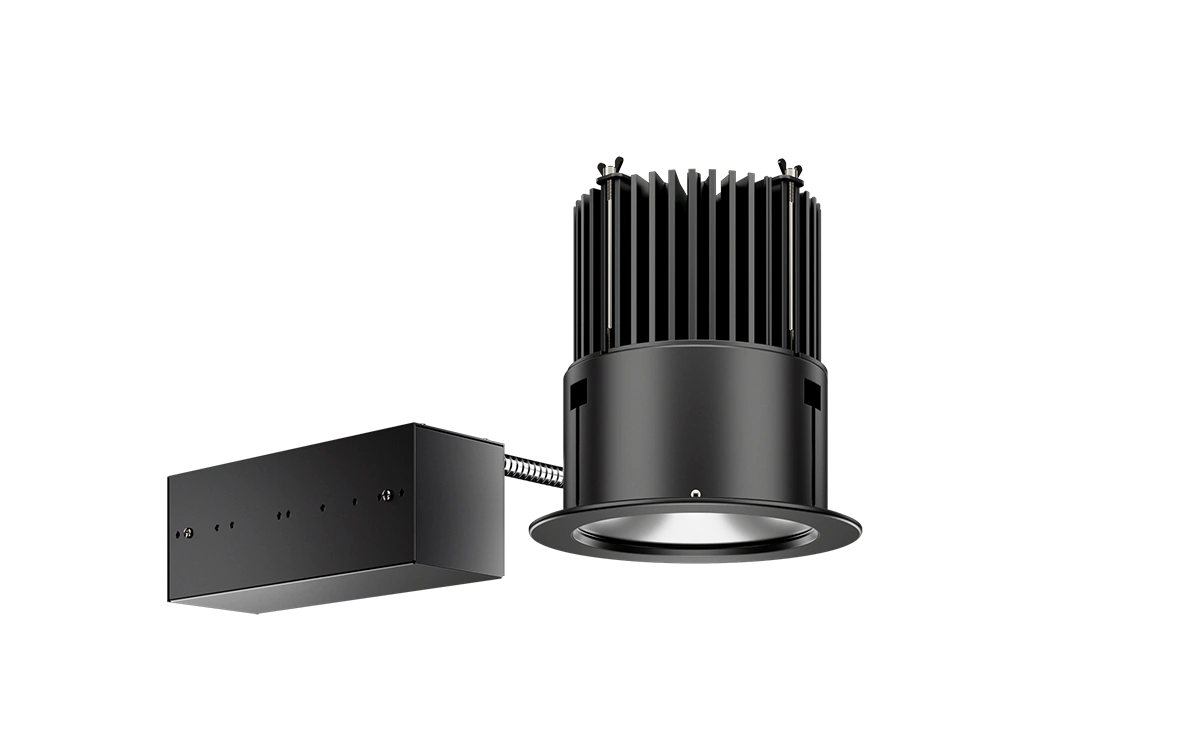

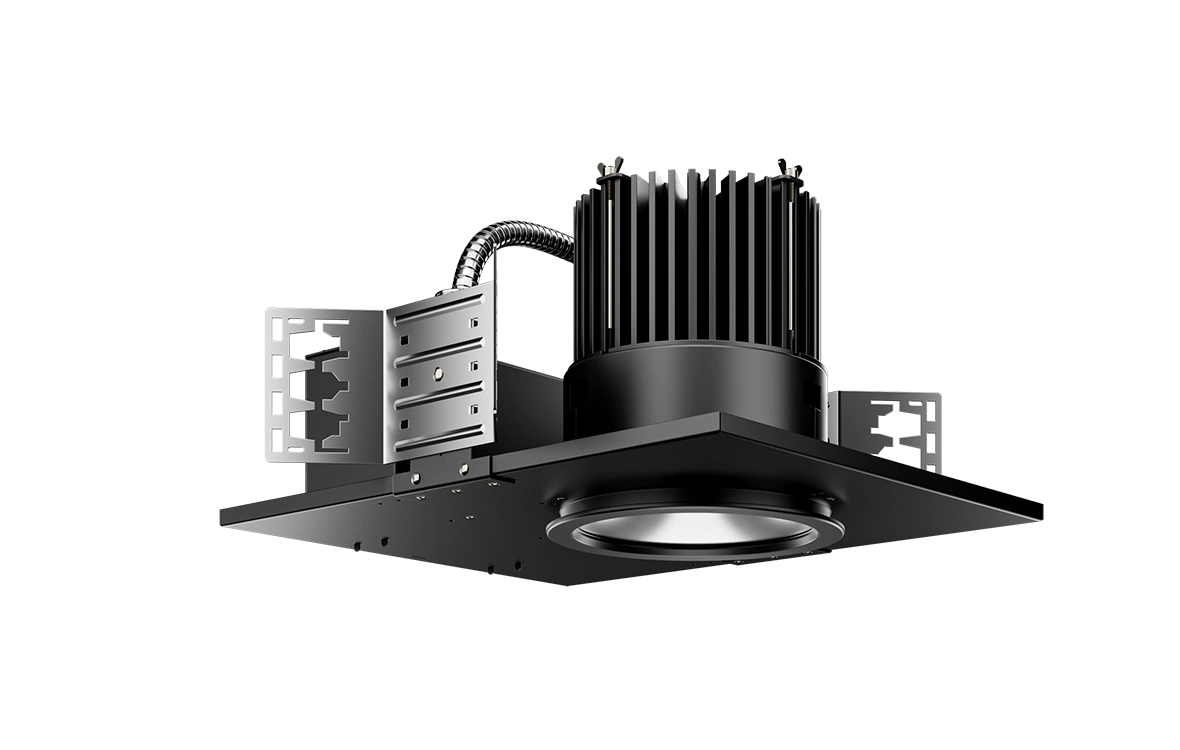

As Meteor’s most versatile downlight family, REV supports the full range of proprietary color technologies, including Archi-Color® W+RGB, W+Hue, Tunable White, and Warm Dim. With configurations for new construction and retrofit and lumen packages capable of replacing 400–500 W metal halide fixtures, REV enables substantial reductions in energy use and maintenance.

Archi-Color® Pro
Archi-Color® W+RGB
Warm Dim
Tunable White
Static White
DMX Compatible
DALI

Features

<p>High Above</p>

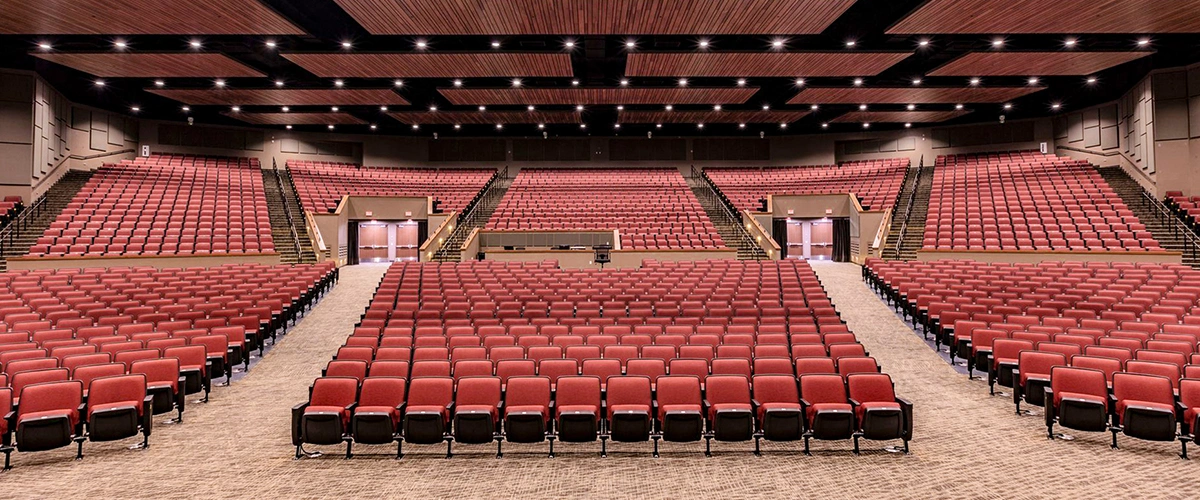

High Above

Designed for mounting heights well above 30 ft, REV Series delivers powerful illumination without visual discomfort. A double optical reflector system shapes and refines the beam, reducing glare while maintaining high center beam intensity and uniform distribution. The result is a clean, comfortable glow that reaches the floor from significant heights.

<p>Archi-Color® W+RGB</p>

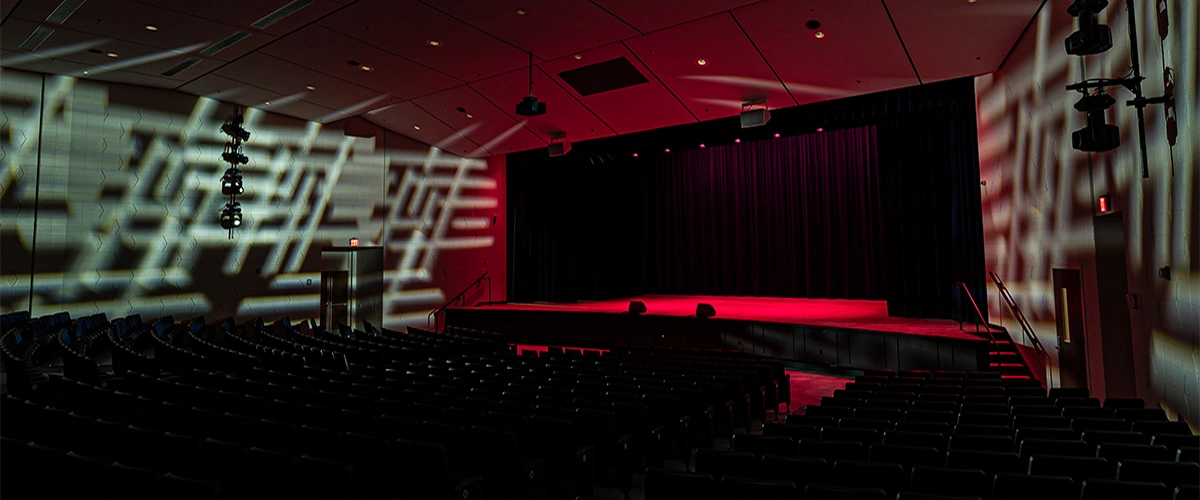

Archi-Color® W+RGB

REV Series extends beyond high-output white light with Archi-Color® W+RGB capability, allowing dynamic color expression without compromising white-light quality. Designers can transition seamlessly from crisp architectural white to saturated color scenes within a single fixture. This integrated approach enables REV Series to serve as both a primary downlight and a flexible design tool for evolving architectural environments.

Downloads

REV 6 - Static White
REV 6 - Archi-Color W+RGB
REV 6 - Tunable White
REV 6 - Warm Dim

Specifications

Electrical

Power Input40W, 60W, 80W, 100W | 120V, 277V
Dimming & Control• Proprietary VX Driver™ for flicker-free dimming • 0–10V: Dims to 1%, 10% • TRC: Linear line-voltage phase control, dims to 1% • LDE1: Hi-Lume 1% EcoSystem • DALI: Dims to 10% • DMX: High resolution dims to 0.1% (Supports ANSI E1.20 RDM protocol)
Surge Protection• Built-in 4kV
