Edge 4

Minimalist Square Cylinder with Power Cord Free Design

Edge is a compact 4-inch square luminaire designed for clean, efficient white light in lower ceiling applications. Delivering up to 4,000 lumens at 45W, it offers a straightforward lighting solution with optional DMX dimming for projects that require additional control. Its crisp, geometric profile brings a subtle architectural character while remaining visually restrained.

Like Orion, Edge is compatible with the PowerLine Suspension System. By integrating suspension and power into a single, slender cable, PowerLine removes exposed wiring and reduces visual noise, allowing Edge to appear clean and floating while maintaining presence.

Static white icon
DMX compatible icon

Downloads

Features

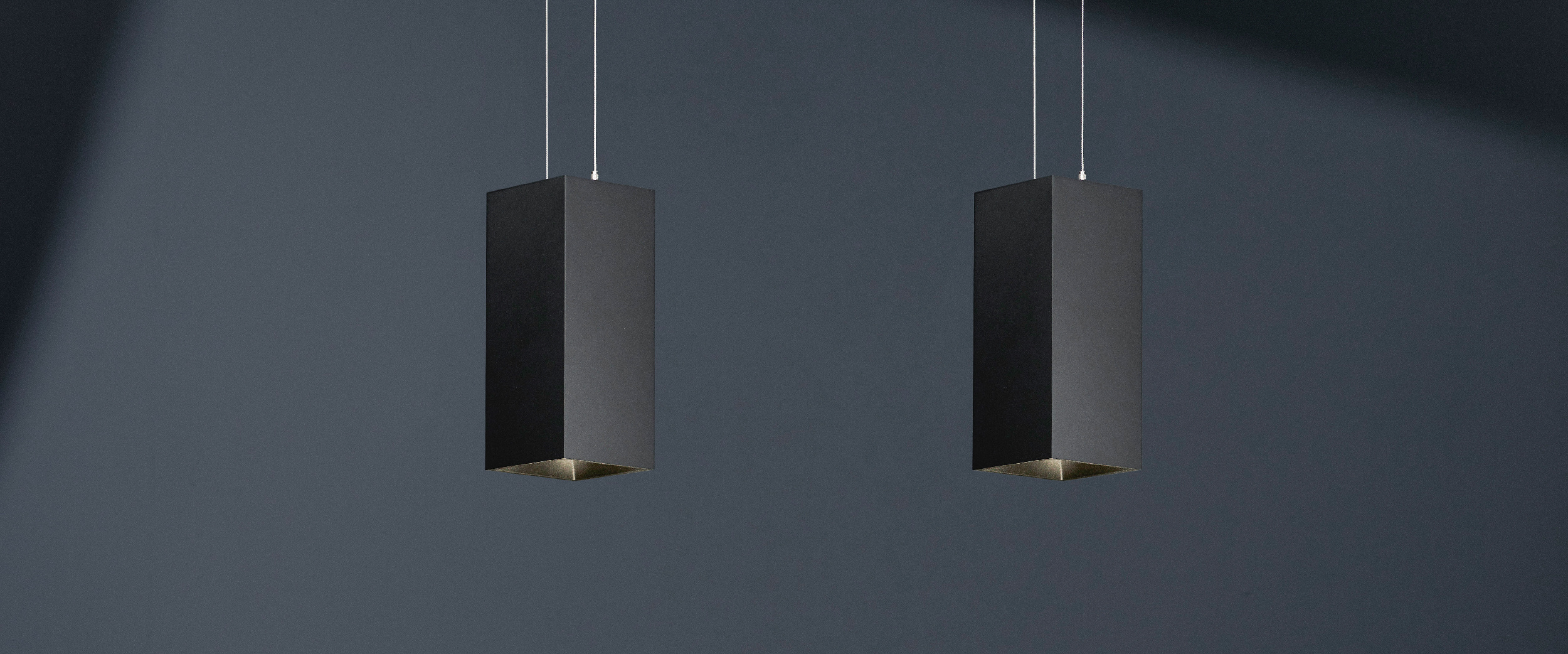

Square black Meteor Edge 4 cylinders suspended in a dark room

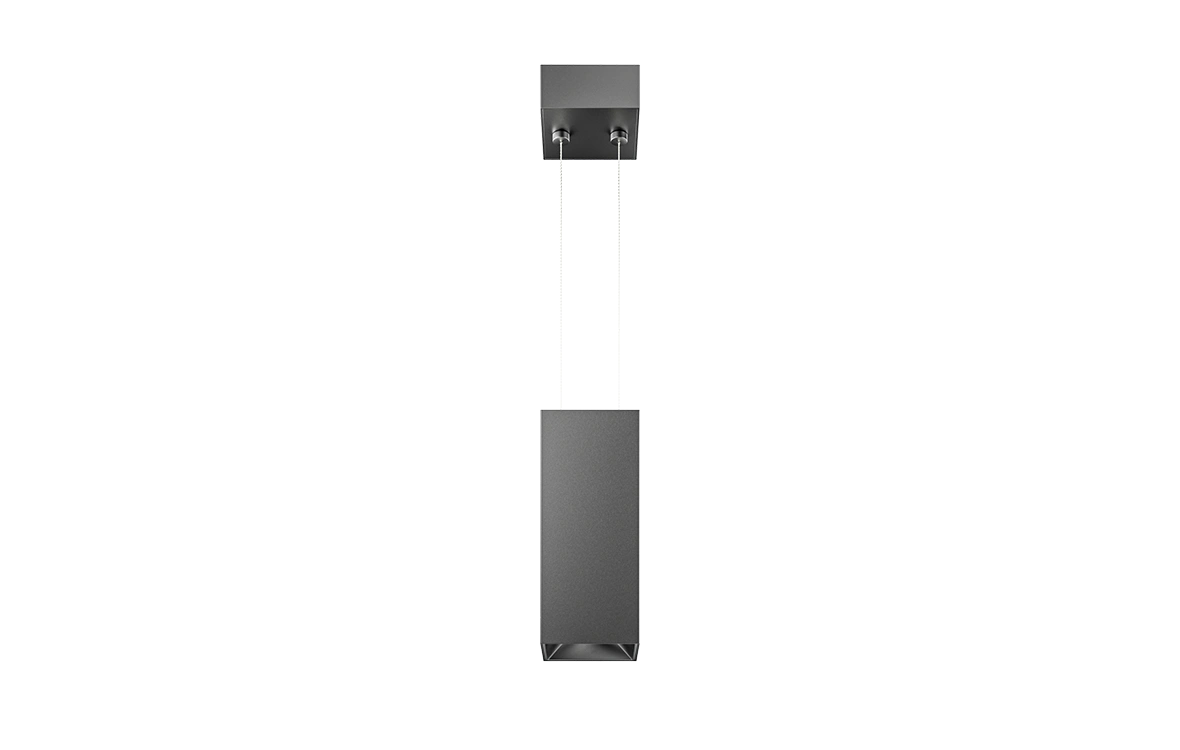

PowerLine Suspension System

The PowerLine mounting system combines suspension and power delivery into a single, slender cable, eliminating the visual noise of exposed wiring. By allowing the cable to visually disappear into the background, Edge achieves a floating presence that reinforces its clean, minimal form and keeps the focus on light rather than hardware.

Specifications

Electrical

Power Input15W, 25W, 35W, 45W | 120-277V
Dimming & Control• Proprietary VX Driver™ for flicker-free dimming • 0–10V: Dims to 1%, 10% • TRC: Linear line-voltage phase control, dims to 1% • LDE1: Hi-Lume 1% EcoSystem • DMX: High resolution dims to 0.1% (Supports ANSI E1.20 RDM protocol)
Surge Protection• Built-in 2kV
