Bolt Mini

Compact High-Performance Floodlight

Bolt Mini brings high-output performance into a compact floodlight designed for discreet architectural and site lighting. Available in two sizes ranging from 60W to 200W, Bolt Mini delivers up to 26,295 lumens, making it well suited for architectural façades, site features, and targeted outdoor lighting where discreet placement is required.

Its reduced form factor supports flexible placement while offering a range of accessories, including visors, diffusers, and glare-control options to shape light and improve visual comfort. Optional wire guards make Bolt Mini suitable for sports and impact-prone environments, and outdoor-rated versions ensure dependable performance in exposed conditions.

Static white icon
DALI control icon
IP65 rated icon
IK10 impact rating icon
Outdoor rated icon

Downloads

Features

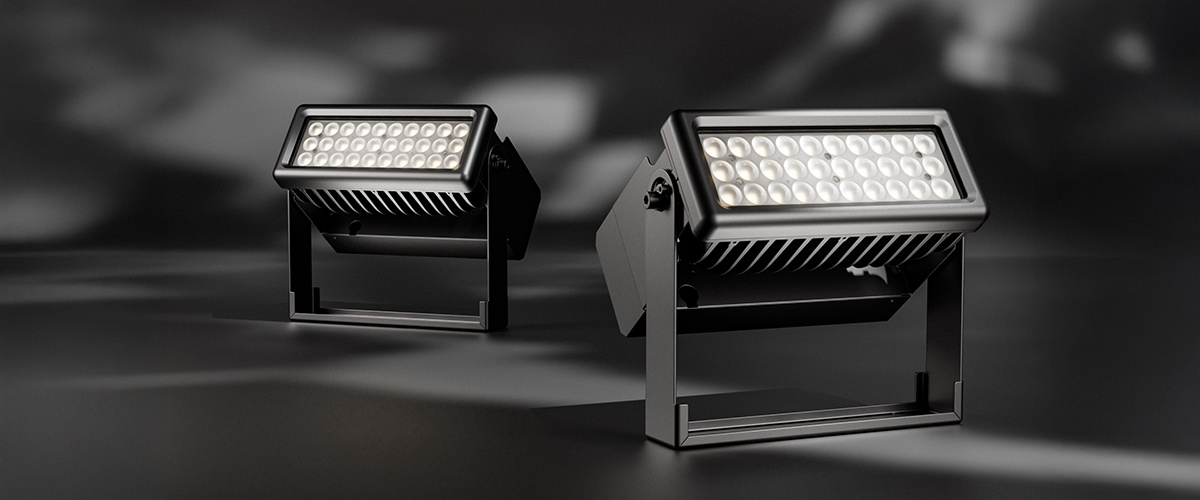

Two Meteor Bolt Mini compact LED floodlights on U-brackets against a dark background

Small But Powerful

Bolt Mini delivers impressive light output from a compact footprint, making it ideal for applications where space is limited but performance cannot be compromised. Its small form allows discreet placement while still providing strong, reliable illumination for architectural accents, work lighting, and stage environments.

Meteor Bolt Mini floodlights with Glare Shield Baffle, Glare Shield Visor and Wire Guard accessories

Optional accessories enhance Bolt Mini’s usability and protection. Glare shields help control light spill, while a wire guard provides added safety in active work and stage environments.

Specifications

Electrical

Power Input60W, 100W, 150W, 200W | 120-277V
Dimming & Control• Proprietary VX Driver™ for flicker-free dimming • 0–10V: Dims to 10% • DALI: Dims to 10%
Surge Protection• Built-in 4kV
